Wireless Relay Kit

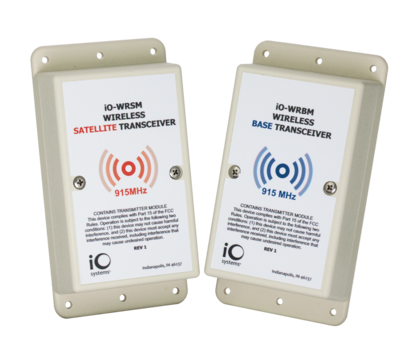

The wireless relay is perfect for situations where you can’t run wire or the existing wire between two devices has been cut or damaged. Now those two devices can communicate wirelessly. The WR Wireless Relay Kit contains 2 four-channel transceivers. The base module has 3 transmitting channels and 1 receiving channel. The satellite module has 3 receiving channels and 1 transmitting channel. Each transceiver module uses a redundant transmission protocol for failsafe protection. If either module does not receive a valid “ON” or “OFF” transmission signal within
60 seconds, the output(s) will be turned off.

Specification: Satellite Module
Dimensions
5 1/8” Height x 2 5/8” Width x 1 1/8” Depth
Input Voltage
24 VAC
Channels 4 channels (1 send, 3 receive)
Contact Rating 1A per channel
Addresses Unlimited kits can be installed in the same building
Frequency 915MHz proprietary protocol
Range 100’ from base module depending on building type

Specification: Base Module
Dimensions
5 1/8” Height x 2 5/8” Width x 1 1/8” Depth
Input Voltage
24 VAC
Channels 4 channels (3 send, 1 receive)
Contact Rating 1A per channel
Addresses Unlimited kits can be installed in the same building
Frequency 915MHz proprietary protocol
Range 100’ from satellite module depending on building type

Dimensions	5 1/8” Height x 2 5/8” Width x 1 1/8” Depth
Input Voltage	24 VAC
Channels	4 channels (1 send, 3 receive)
Contact Rating	1A per channel
Addresses	Unlimited kits can be installed in the same building
Frequency	915MHz proprietary protocol
Range	100’ from base module depending on building type
