Specifications
Mounting
Aluminum back plate with mounting holes
Dimensions
8.00” Height x 6.00” Width x 1.50” Depth
Coverage 1,500 – 4,000 ft^2
Adjustable Ventilation Timer 1 – 60 minutes
Ventilation CFM Range 40 – 150 CFM
Power Requirement 24VAC
Damper Requirement 24VAC, 10VA, power open/spring closed actuator

Micro-controller logic panel
Status LEDs
Single adjustment setup
"Damper Closed" override switch
Meets ASHRAE Standard 62.2
Exhaust fan control option
Remote damper override option
Outdoor temperature or humidity override option
5-year warranty

Fresh Air Ventilation

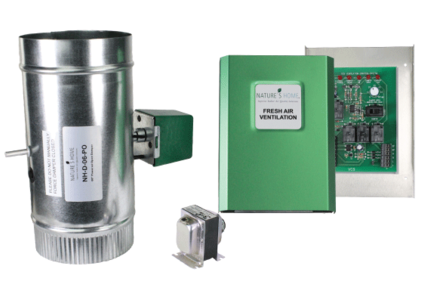

The Nature's Home fresh air ventilation system is designed to improve residential indoor air quality. This is accomplished by introducing fresh, outside air through an intake damper controlled by a logic panel. The panel controls the amount of fresh air required each hour based on the ASHRAE 62.2 Ventilation and Indoor Air Quality Standard. The FAV kit comes with the control panel, a 6" or 8" damper and a 20VA transformer.

Installation Manual with 8" Damper

Product Brochure

Mounting	Aluminum back plate with mounting holes
Dimensions	8.00” Height x 6.00” Width x 1.50” Depth
Coverage	1,500 – 4,000 ft^2
Adjustable Ventilation Timer	1 – 60 minutes
Ventilation CFM Range	40 – 150 CFM
Power Requirement	24VAC
Damper Requirement	24VAC, 10VA, power open/spring closed actuator

Fresh Air Ventilation
